Screate DALA was established in 2012,with over 50 R&D personnel and 100 millionyuan turnover. Our mainproducts include:3D drawingdie profle measurementsystems, optical lase1micrometers and length metersetc. We provide excellentsystem level measurementsolutions for wire and cableindustry, As so far we are in aleading market position inmultiple sub sectors.
|
DALA is a customer-orientedcompany,creating values forthe industries througheffective application of newtechnologies.DALA workstogether with customers tocreate better performance andhigher quality products, doingour bit to people' 100 milives.
In-house Production Lines & Proprietary Intellectual Property
We know well 3 types of outside diameter measurement technologies
Fraunhofer diffraction measurement principlelaser is aligned into a parallel light beam by collimator lens to catch the object on the light path. Diffraction image of the object will be projected on CCD sensor by the imaging system. Then the object dimension can be accurately calculated by analyzing and calculating the diffraction fringe.
Telecentric optical measurement principleWhen the object is caught by the laser beam passed through lens, a bright and dark area will be formed on CCD. Then object dimension will be accurately calculated by detecting the bright and dark edges and software analysis.
Fresnel diffraction measurement principleAdopt CCD array sensor and pulse laser light source, calculating object dimensions by directly analyzing object diffraction waveform distribution characteristics.
Length meter measurement technologyInterference fringe light spot is generated when two laser beams intersect on the surface of the object. The interference fringe modulates the scattered light from the object, which frequency is positively correlated with the object's velocity.
Digitization information system to process the fringes, combines with software to analyze and calculate object velocity and length.

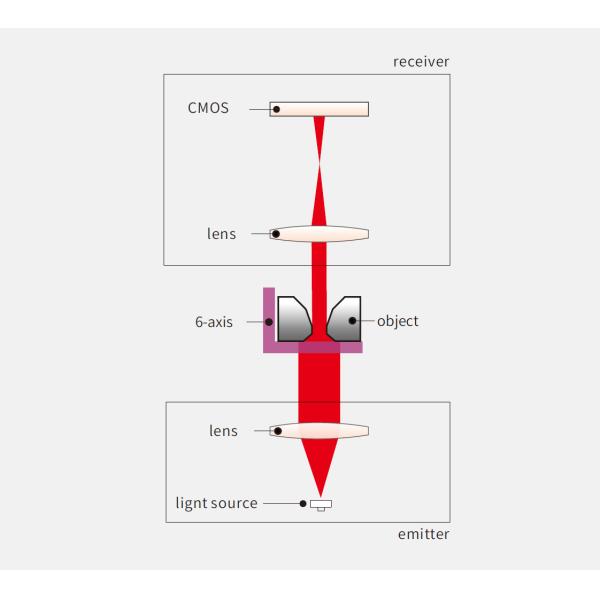

 Drawing die measurement technologyBased on optical imaging technology, 3D reconstruction of drawing die inner holes can be achieved through optical scanning, which can measure bearing variation, inclination, bearing length, ovality ,reduction cone angle .,etc.
 |
